During your appointment, our delivery team will unbox and connect the Hubbl Glass to its stand. If you choose to assemble it yourself, please follow the below instructions.
Important information
- Ensure you read the Important safety and product information leaflet that came with the Hubbl Glass before installing and using.
- Carefully read all of the steps below before beginning assembly.
- At least two people are required to assemble.
- Ensure there's enough space to move in front of and to the sides of where you'd like the Hubbl Glass located, and that the area is clear of obstacles.
1. Assemble the stand
If you have an Anthracite Black Hubbl Glass, follow Instructions A.
If you have a Hubbl Glass in a different colour, follow Instructions B.

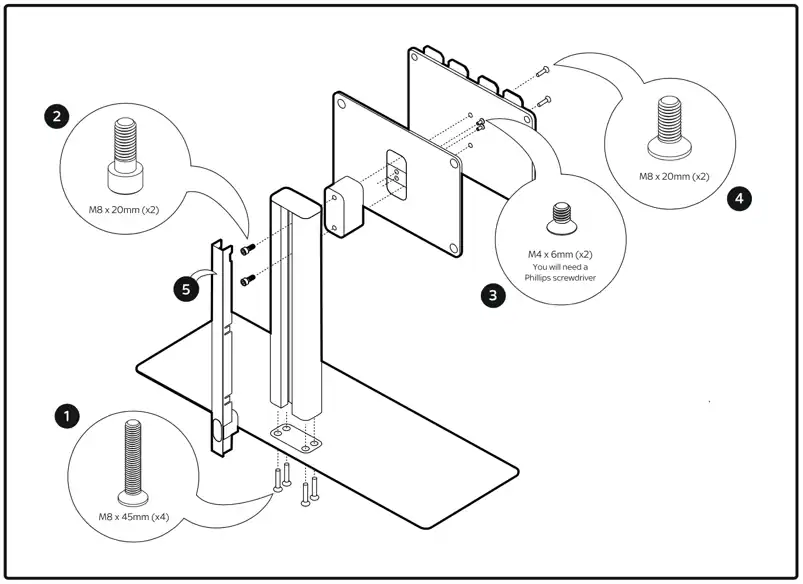

Instructions A (Black Anthracite)
Contents:
- Allen key
- M8 x 45mm screws (x4)
- M8 x 20mm screws (x4)
- M4 x 6mm Phillips screws (x2)
What else you'll need:
- Screwdriver
Instructions:
- Fit the stand column to the stand base using the M8 x 45mm (x4) screws and Allen key. Make sure the Hubbl logo is pointing upwards.
- Secure the neck to the stand column using the M8 x 20mm (x2) screws and Allen key.
- Secure the plastic cover to the neck using the M4 x 6mm (x2) Phillips screws.
- Fit the metal bracket using the M8 x 20mm (x2) screws and Allen key. Make sure the metal bracket has the teeth pointing upwards and on the outer side.
- Check all your fixings are tight. Then clip the plastic spine.

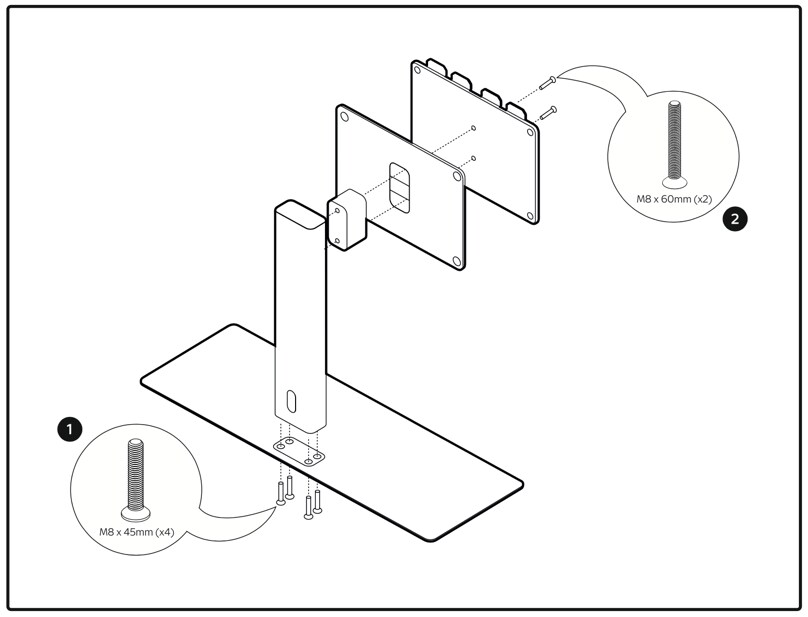

Instructions B (different colour)
Contents:
- 1 Allen key
- M8 x 45mm screws (x4)
- M8 x 60mm screws (x2)
- Stand parts (x5)
Instructions:
- Fit the stand column to the stand base using the M8 x45mm (x4) screws and Allen key. Make sure the Hubbl logo is pointing upwards.
- Secure the neck/plastic cover assembly and the metal bracket to the stand column using the M8 x 60mm (x2) screws and Allen key. Make sure the metal bracket has the teeth pointing upwards and on the outer side.
- Check all your fixings are tight.
2. Attach the stand to the Hubbl Glass
Warning: TV is heavy. Two person lift required.

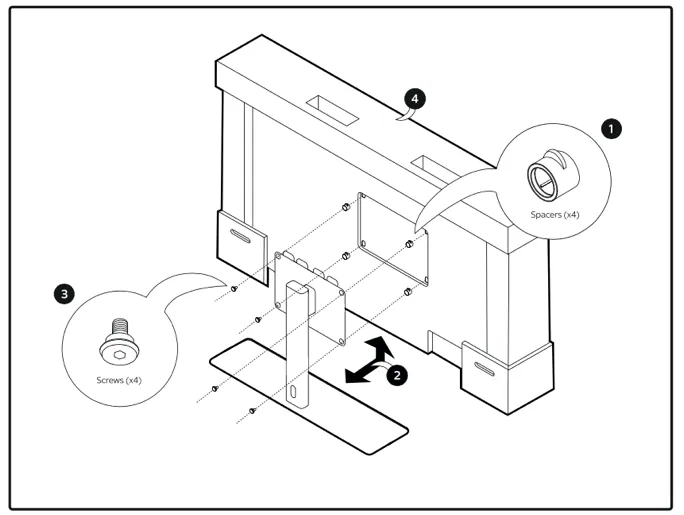

Once the stand is assembled, follow the below steps to attach it to the Hubbl Glass.
Contents:
- Spacers (x4)
- Screws (x4)
Instructions:

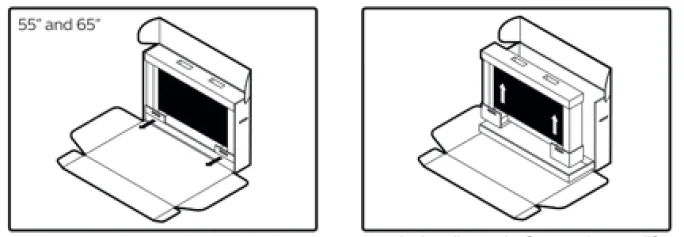

- Pull out the TV by using the two handles.
- Use the handles at the front and rear to lift and place on a flat surface. Remove the accessories from the cardboard packaging.
- Fit the spacers (x4) into the back of the TV.
- Lift and ease the TV onto the assembled stand.
- Make sure the 4 tabs on the stand connect.
- Secure with the screws (x4) using the Allen key.
- Remove the cardboard top, then slide off the cardboard sides.
Position the TV on a flat surface and follow the Setting up Hubbl Glass guide.
